Re: 1996 Mr.Pink

Postby MY91GT(Z) » Wed Aug 31, 2016 12:27 pm

After this don't think their much out anything u can do to this trans other then trying different converters


94 Z26 parted/scrapped. 93 GT EP LSD, headers,intake,poly/delrin mounts, 2.5 S.S,Exhaust,dickman kits,GTUspoiler,Euro headlights-tails-mirrors-fender flares,Intrax/Koni,91+blk interior, d&s rotors,rr disk swap,s.s.clutch line

User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Wed Aug 31, 2016 2:03 pm

Correct... Converter's are pretty much all I am really testing right now anyways... The ratchet sprags are nice but I don't know if they are necessary... They are guaranteed to never slip but I don't know if my current ones are.

Honestly besides the converter the only other things I could do is upgrade to a Torsen Diff if I can ever come to spending that much on one part, and find one... (near $1,800) and the only other thing I can think of is setting up a trans brake, but I feel doing that would just end up breaking axles more than me peddling the car off the line.



User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Fri Sep 09, 2016 10:52 am

Well there are few more changes being done to finalize this thing one more time...

Changing to Metallic type 4th clutches, Paper ones keep getting burnt up, Not sure if it's from pressure loss or something else.
4t65e Input clutches to match the ratchet sprags... I didn't realize I needed to upgrade those to match the sprag but I guess I do.
LSD being freshened and preload increased.
3rd gear Sonnax billet aluminum apply piston.
Blocking 4th accumulator passage to increase 4th clutch pressure.

Future updates... After testing
4t65e 4th gear hub, and clutches if needed, which means I can finally use a 4t65e-HD output shaft!!! and not a 1 year 60e-hd output shaft which is hard to find!

I'm sure this list will grow as I learn more... Hell maybe I'll just say F-it and put a 4t65e-HD in it... lol



User avatar
1988GTU
Registered User
Posts: 2744
Joined: Sat Mar 23, 2002 1:06 pm
Location: A town up north
Has thanked: 18 times
Been thanked: 11 times

Re: 1996 Mr.Pink

Postby 1988GTU » Fri Sep 09, 2016 11:16 am

3X00-Modified wrote:Future updates... After testing
4t65e 4th gear hub, and clutches if needed, which means I can finally use a 4t65e-HD output shaft!!! and not a 1 year 60e-hd output shaft which is hard to find!


What was the past reasoning of going without this sooner?


_________
-------------

User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Fri Sep 09, 2016 11:33 am

Did not know it was a potential option... Jeff from EP asked me when I showed him a picture of the clutches asking WTF is happeneing here if I was running the 65e hub and clutch pack... I responded with um no... didn't know it was an option. So I've purchased both the hub and clutches to see how it all measures up in comparison and if it's possible. He did a 4T-440 hybrid that way so the parts may or may not be the same, so it's something I'll have to math out.

Remember this is just the shaft that goes from the diff to the drivers side axle... it's not any bigger or stronger to my knowledge, it's just a change in how the end is supported by the 4th hub. Currently there is a hardened race in the 60e's 4th gear hub and there is a roll bearing/cage on the axle... Previous years were a bushing in the 4th hub and a smooth race on the axle. I think the 65e went back to that or the 4th hub itself has the roller bearing since the axle only appears to have a smooth race, no caged bearing. Basically it would just open up the market for replacement parts if I were to ever break it, and for $199 I could buy fancy custom made one from ZZPerformance if it's meant for the HD trans.



User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Fri Sep 09, 2016 12:27 pm

Looks like I could use the 4t65e-HD output shaft if it's the same length and spline count as what I have in conjunction with this seal on the drivers side


That would support the drivers side axle by the CV joint itself and not rely on the output shaft being supported by any other internal part. They have this to also prevent driver side axle seal leaks from free play of the CV moving or the shaft itself.



User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Fri Sep 09, 2016 12:35 pm

Talked with Jeff some more... seems like this wont work, Spline count and length are both different on the output shafts.. BUMMER!



User avatar
1988GTU
Registered User
Posts: 2744
Joined: Sat Mar 23, 2002 1:06 pm
Location: A town up north
Has thanked: 18 times
Been thanked: 11 times

Re: 1996 Mr.Pink

Postby 1988GTU » Fri Sep 09, 2016 8:35 pm

Any possibility in a T-Case for scavenging parts, or VersaTrak components?
Not sure the "interchangeability" of those to the dedicated fwd transverse transmissions.


_________
-------------

User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Fri Sep 09, 2016 9:20 pm

What would I be looking for in one of those?

Sent from my Nexus 5X using Tapatalk



User avatar
1988GTU
Registered User
Posts: 2744
Joined: Sat Mar 23, 2002 1:06 pm
Location: A town up north
Has thanked: 18 times
Been thanked: 11 times

Re: 1996 Mr.Pink

Postby 1988GTU » Fri Sep 09, 2016 9:42 pm

bearing setup, shaft use?


_________
-------------

User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Sat Sep 10, 2016 7:41 am

I think it's all unique...I just need to get myself some 65e's to tear apart and compare stuff.

Sent from my Nexus 5X using Tapatalk



User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Mon Sep 12, 2016 10:00 am

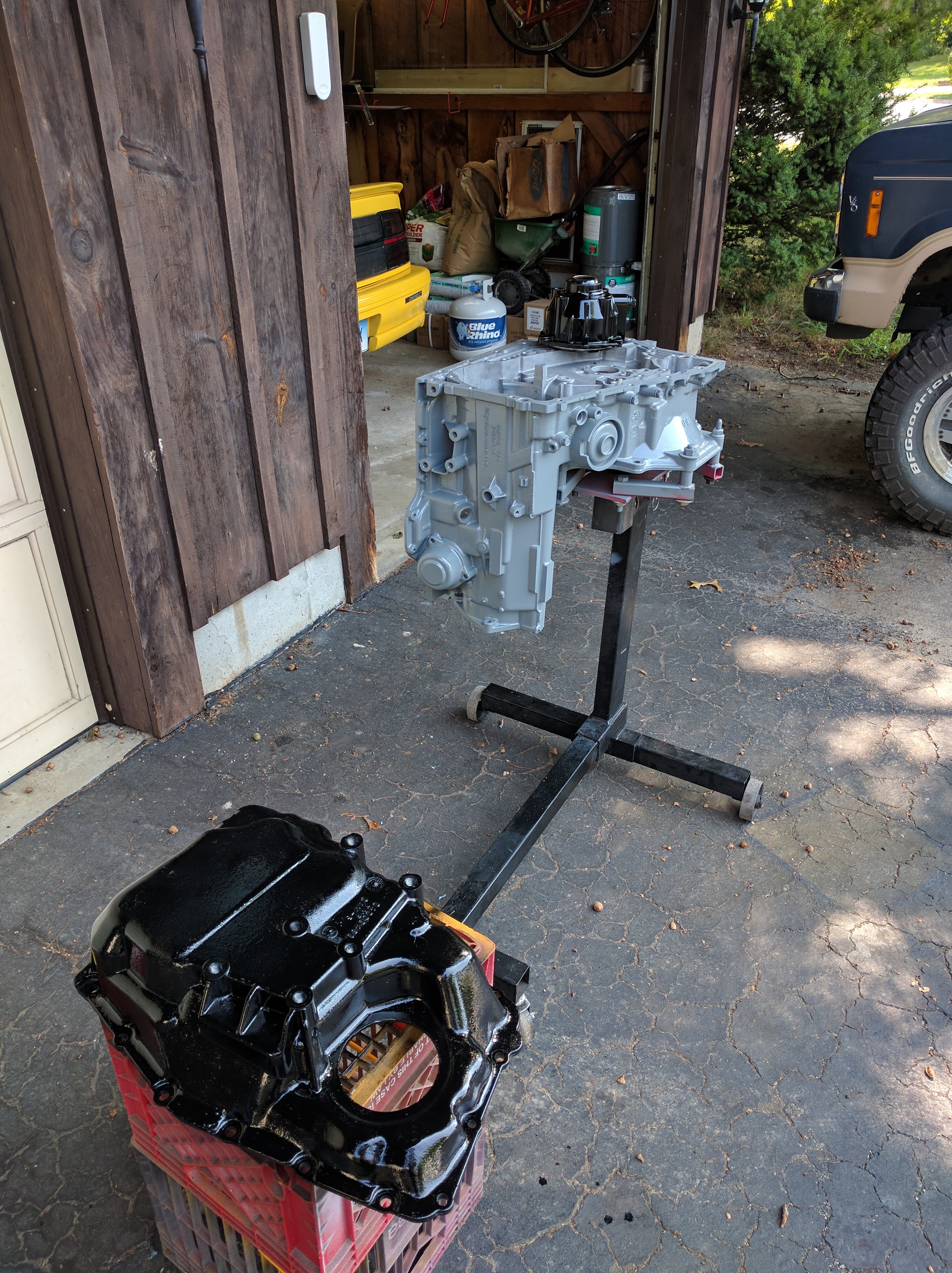

Beautifying stuff... lol

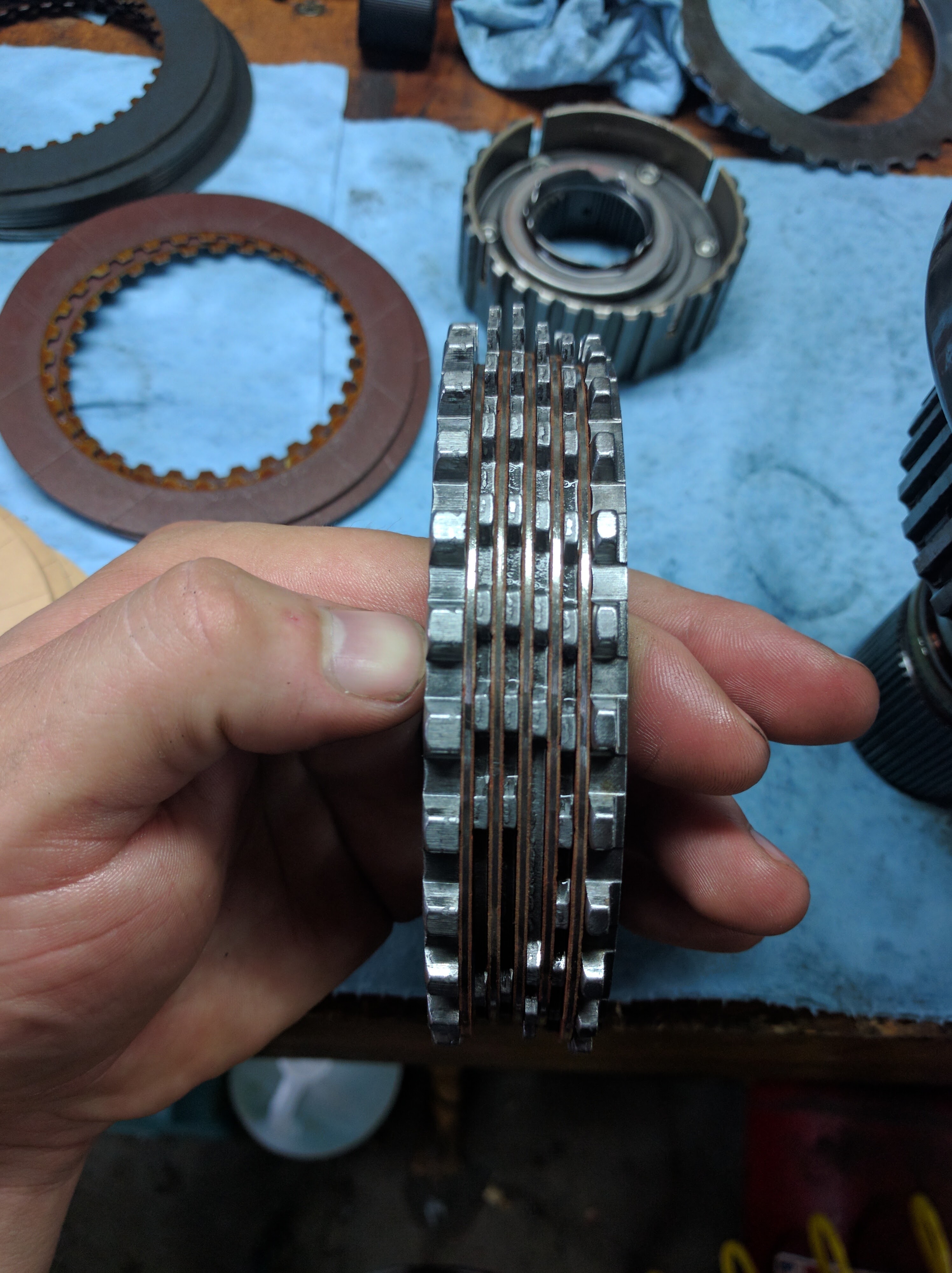

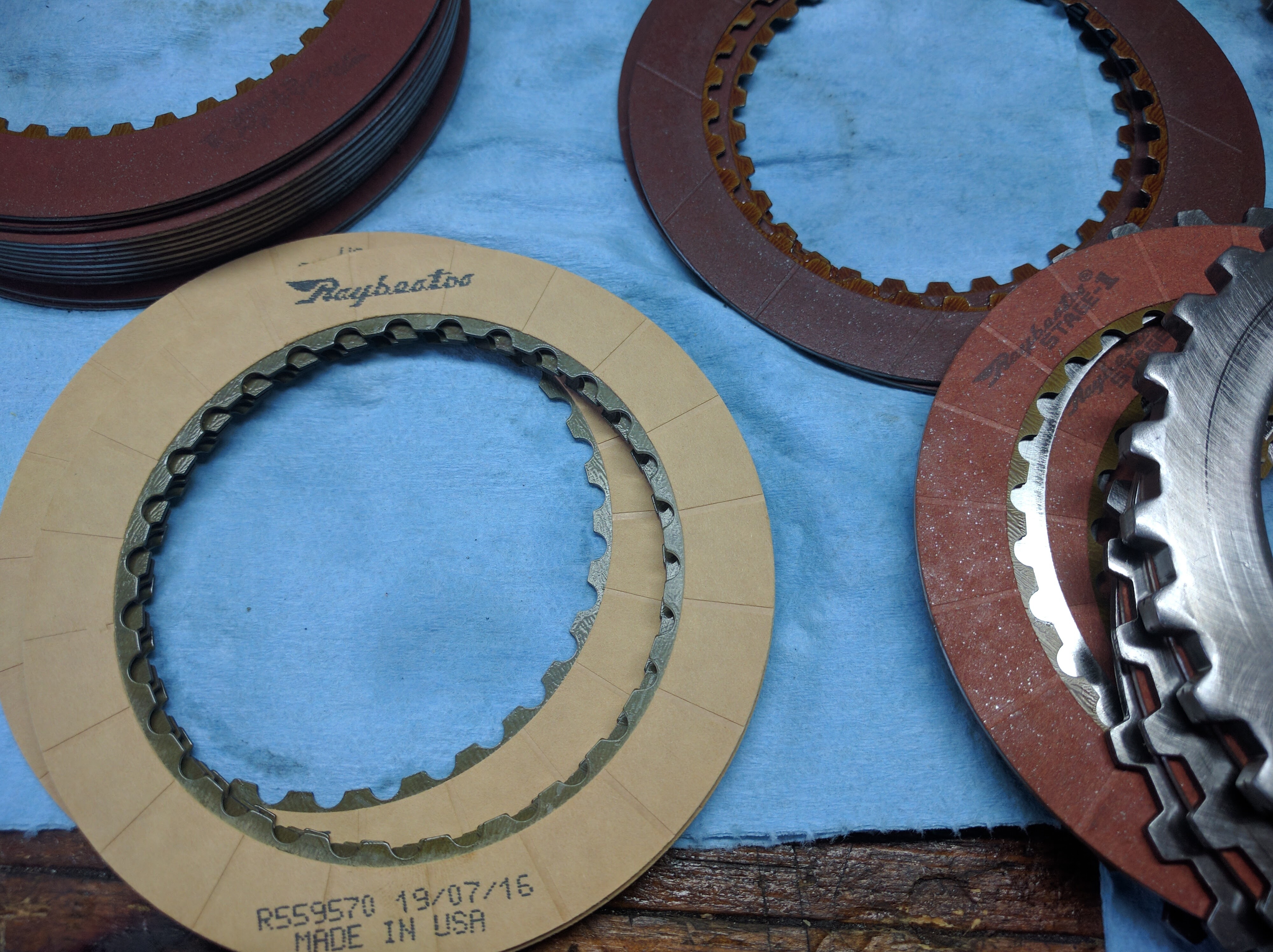

Random clutch packs that I was assembling at the time... Have the option for standard paper for the input or the Raybestos Sage 1 Reds... I'll give the reds a try :) it will match everything else I have.


Removed the wavy spring plate to improve clamping force as well as added a 5th friction disc which improves the friction surface area by 25% of the existing.




User avatar
themixer
Registered User
Posts: 1520
Joined: Fri Aug 14, 2009 12:13 pm
Location: Truro, Nova Scotia. Canada
Has thanked: 3 times
Been thanked: 16 times

Re: 1996 Mr.Pink

Postby themixer » Mon Sep 12, 2016 10:17 am

i would never install that transmission in my car, exterior is way too clean, the internals must be faulty. :D :lol:



User avatar
3X00-Modified
Administrator
Posts: 10664
Joined: Thu Jul 05, 2007 9:18 am
Location: Plainfield CT
Has thanked: 12 times
Been thanked: 46 times

Re: 1996 Mr.Pink

Postby 3X00-Modified » Mon Sep 12, 2016 10:34 am

You know I cleaned it and painted it simply because you said it was dirty right? At first I wasn't planning on re-painting it.



User avatar
themixer
Registered User
Posts: 1520
Joined: Fri Aug 14, 2009 12:13 pm
Location: Truro, Nova Scotia. Canada
Has thanked: 3 times
Been thanked: 16 times

Re: 1996 Mr.Pink

Postby themixer » Mon Sep 12, 2016 12:51 pm

it actually looks good! i cant wait for you to come visit me, we will need 400 cans of brake clean and some industrial grey paint to do mine!
