Rear Spring Insulators/Bump Stops

[kfainf]

Hey gang. Anyone have a source for new rear spring insulators for a '93 GT? I especially need the lower ones with the bump stops. I have searched at all the usual parts stores, including Rock Auto and GM Direct, but have found nothing available. Thanks for any info you might have.

[3X00-Modified]

I got this number from the direct catalog for a 93

22569455

Cliff is this a valid number for that part? I know GM doesn't sell it anymore but does VPI have them?

[Cliff8928]

That's the right number for the uppers...

As for the lower, it's like this...

14089790 (Exc FE7, Exc Z08)
22539041 (FE3 w/Z08)
22539040 (FE7)

I wonder what the difference is with the Z08 (convertible) ones?

[3X00-Modified]

He asked for the lowers with the bump stops... BUT unless the years were different, my 95+ both had the bumps on the top insulator, not the bottom.


Whats the year brackets on those parts because the rear axle changed alot for 95+ especially regarding the lower spring area... is that the 14089790 number?

[Barry]

Pre 95 bump stops are on bottom.


While your in there sand off the rust and re paint the area under the insulators. It's a serious rust area

[kfainf]

Pre 95 bump stops are on bottom.


While your in there sand off the rust and re paint the area under the insulators. It's a serious rust area

Thanks for the tip, I will do that. Thanks guys for the part numbers. This should help.

[Luckymc420]

Anything new on this. I'm In the market for some for a 91. I ran all those numbers in VPI "There is no product that matches the search criteria."

[3X00-Modified]

probably better off using Energy suspension universal ones... that is if you can bolt them somewhere.

[Luckymc420]

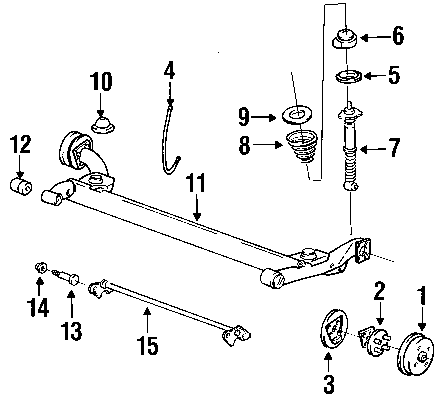

Looking for 9 and 10
I can get 9 but 10 is the tough one. They call it a Bumper Bumper Back I got a PN 14089790

[3X00-Modified]

Ok, you have two choices... GMParts Direct or VPI and Neither list it... So your SOL you need to go custom, this isn't hard to figure out unless you want a JY item.
