really need wiring diagram for 1990 Chevy Beretta GT 3.1 liter V6
-
- Registered User
- Posts: 35
- Joined: Sun Sep 29, 2019 6:35 am
- Location: San Jacinto, CA
- Contact:
really need wiring diagram for 1990 Chevy Beretta GT 3.1 liter V6
Really need wiring diagram for 1990 Chevy Beretta GT V6 3.1 liter. Need to know where the rpm signal comes from. And if I can check injection pulse at Connected or PCM??
Re: really need wiring diagram for 1990 Chevy Beretta GT 3.1 liter V6
PM replied to for the RPM (Tach) signal info... Yes, you can check injector-pulse at the injector-harness four-pin connector, or even the PCM, the noid-lights just don't plug in to either harness like they do the injector connector.
1989 SuperCharged 3800 Srs-II (First)Six-Speed GTU
1990 Turbo 3.4 5-Speed T-Type
1990 4.0L 4-Cam 32-Valve V-8 5-Speed Indy GTi (Project)
1990 Stock(!) 3.1 MPFI Auto Indy
1995 LA1/L82 4T60E Z-26
1995 3.4 DOHC Turbo 5-Speed Z-26
1990 Turbo 3.4 5-Speed T-Type
1990 4.0L 4-Cam 32-Valve V-8 5-Speed Indy GTi (Project)
1990 Stock(!) 3.1 MPFI Auto Indy
1995 LA1/L82 4T60E Z-26
1995 3.4 DOHC Turbo 5-Speed Z-26
-
- Registered User
- Posts: 35
- Joined: Sun Sep 29, 2019 6:35 am
- Location: San Jacinto, CA
- Contact:
-
- Registered User
- Posts: 35
- Joined: Sun Sep 29, 2019 6:35 am
- Location: San Jacinto, CA
- Contact:
Re: really need wiring diagram for 1990 Chevy Beretta GT 3.1 liter V6

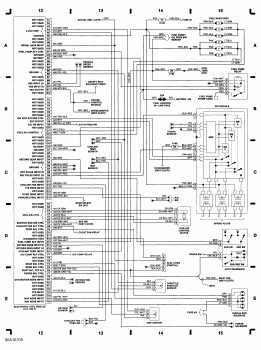

This diagram matches, I'm familiar with this graph so if you were to say C12 wire I'd be familiar, quick learner
