corner balance and alignment
corner balance and alignment
there ya have it. the weight is with me and 3/4 of a tank of gas. Its close enough considering I usually race with more gas (it will cut out from no fuel) and have a passenger half the time.
its pretty much with in ~50lbs of being perfect. 60/40

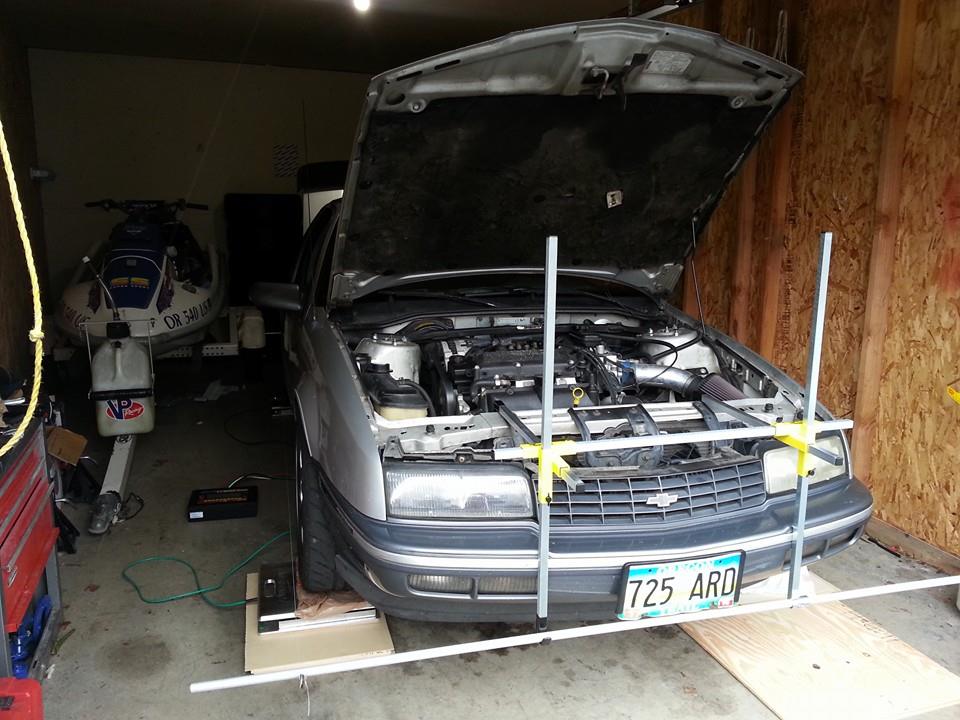

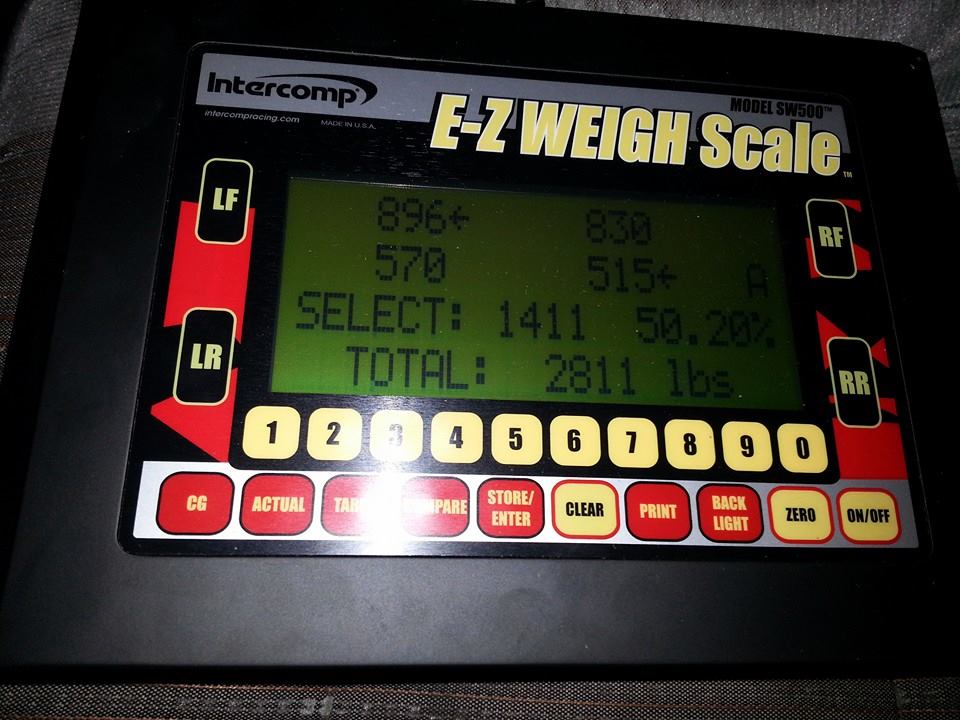

intercomp scales and smart strings alignment setup
-1.5* camber up front
rear was -1* If I remember right, and you cant adjust it so I didnt check it this time
toe is 0
caster was +5 last I had it checked with the subframe pushed forward as far as it goes
its pretty much with in ~50lbs of being perfect. 60/40

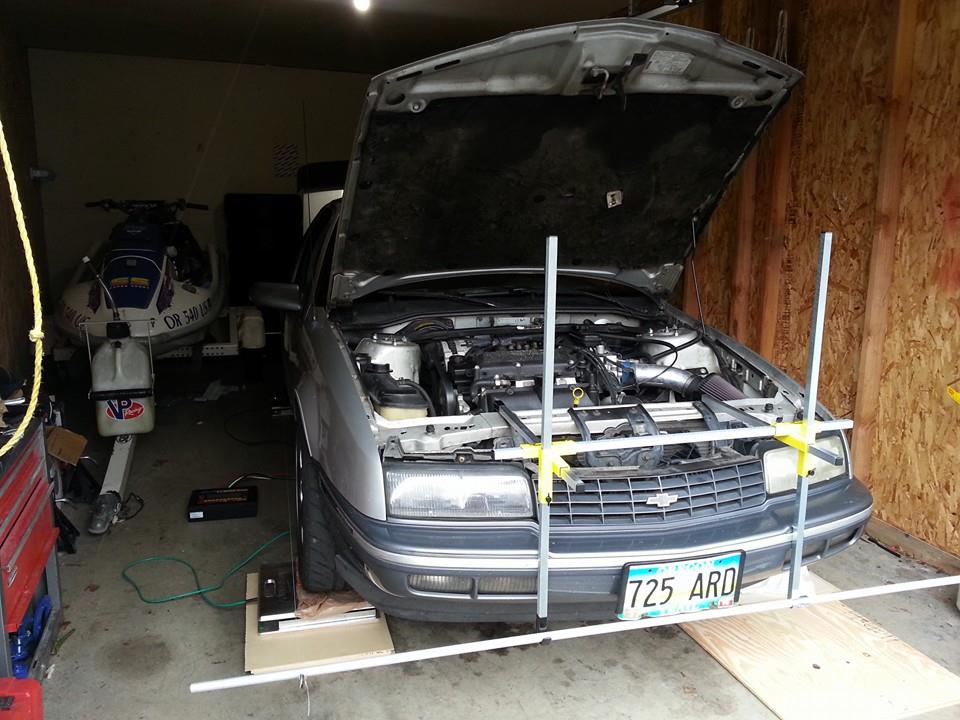

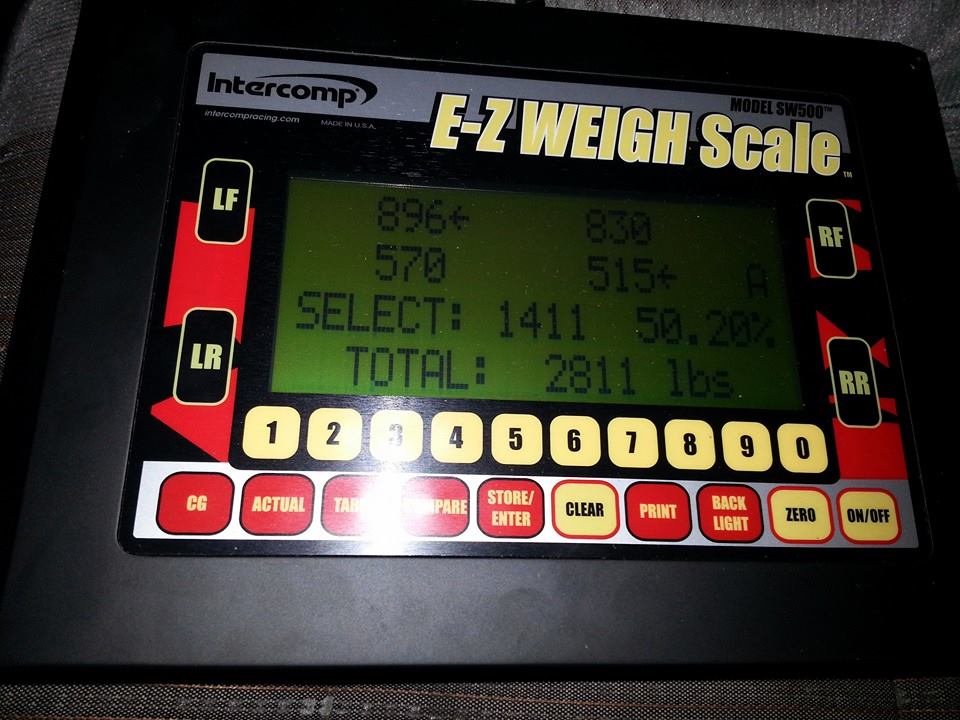

intercomp scales and smart strings alignment setup
-1.5* camber up front
rear was -1* If I remember right, and you cant adjust it so I didnt check it this time
toe is 0
caster was +5 last I had it checked with the subframe pushed forward as far as it goes
![Image](http://img.photobucket.com/albums/v460/Alxsmt/newsig-1.jpg)
88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, magnaflow, Koni, coilovers.
86 Subi - Supercharged @7psi
- 3X00-Modified
- Administrator
- Posts: 10912
- Joined: Thu Jul 05, 2007 9:18 am
- Location: Brooklyn CT
Re: corner balance and alignment
2811 Jesus... my car is FAT! 3145 last time I weighed it... 205 of that being me. Then again I have a full interior, Auto, A/C and my stereo... Minus the subs of course.
- woody90gtz
- Registered User
- Posts: 4706
- Joined: Thu Jul 11, 2002 8:45 pm
- Location: Walton, NY
- Contact:
Re: corner balance and alignment
Mine figured about 2700 without me in it...so you're a little lighter than that unless you're super skinny. haha
91 "SS" - WOT 3400/5spd - 13.29@101.6 - World's fastest N/A FWD Beretta
96 "T56" LS/6spd/8.8 RWD swap - 13.45@104.7 lol
GEARHEAD dezign youtube
96 "T56" LS/6spd/8.8 RWD swap - 13.45@104.7 lol
GEARHEAD dezign youtube
Re: corner balance and alignment
haha. I have about 100lbs of sub and box in the trunk.. power everything but no ac. but I also have a trailer reciever on the back. Im about 150lbs. DOT scales told me my car was 3000lbs
![Image](http://img.photobucket.com/albums/v460/Alxsmt/newsig-1.jpg)
88 Beretta CL - your average grandma car.. Ls1 swap in progress
77 Celica - needs an engine swap
96 Geo - 1.0L, Cam, 3 angle, magnaflow, Koni, coilovers.
86 Subi - Supercharged @7psi
- 3X00-Modified
- Administrator
- Posts: 10912
- Joined: Thu Jul 05, 2007 9:18 am
- Location: Brooklyn CT
Re: corner balance and alignment
The scales I used were at the dragstrip, NO idea how accurate they are. I have access to one of these Longacre setups though so I could do this on mine and see more accurate numbers.
Re: corner balance and alignment
Nice...u need coilovers to maximize your suspension tuning...
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/lfront.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/rfront.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/rear_zpsb1bb942e.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/OVERALLweight.jpg)
this was with me in it, cannot remember the particulars, but I was around 140-150ish lbs *cough* then...full interior (relatively speaking) I do not have AC, but have hardware, speakers and a boombox....connected sway bar and pic was taken before tuning...lost the pics for the tuned suspension. I believe this was somewhere in the fall of '06.
Currently standing I think the car will be around 30XX/31XX lbs (min/max) with me in it...
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/lfront.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/rfront.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/rear_zpsb1bb942e.jpg)
![Image](http://i23.photobucket.com/albums/b384/NoeCutt/OVERALLweight.jpg)
this was with me in it, cannot remember the particulars, but I was around 140-150ish lbs *cough* then...full interior (relatively speaking) I do not have AC, but have hardware, speakers and a boombox....connected sway bar and pic was taken before tuning...lost the pics for the tuned suspension. I believe this was somewhere in the fall of '06.
Currently standing I think the car will be around 30XX/31XX lbs (min/max) with me in it...
Re: corner balance and alignment
nice, our cars are pretty close to the same weight then. I was thinking mine was a freak light model. I have no ac related components
do you mean like this?![Smile :-)](./images/smilies/smile.gif)
no front swaybar

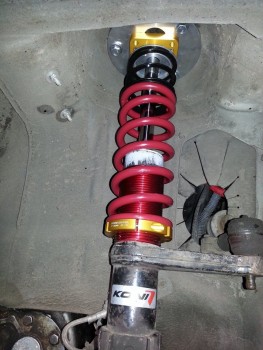

600lbs springs all around with adjustable perches

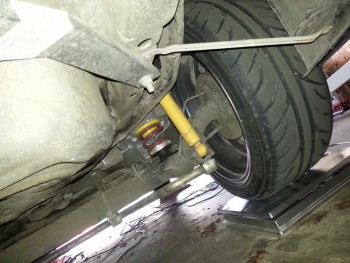

1" addco rear

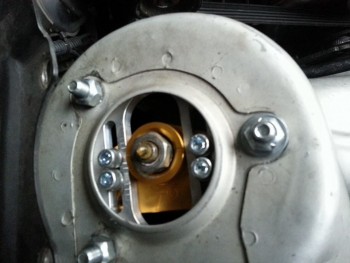

camber plates
koni yellows
I only took took it as close as I did because with more gas, and a passenger it changes everything. kinda picked an in the middle balance
do you mean like this?
![Smile :-)](./images/smilies/smile.gif)
no front swaybar
600lbs springs all around with adjustable perches
1" addco rear
camber plates
koni yellows
I only took took it as close as I did because with more gas, and a passenger it changes everything. kinda picked an in the middle balance
